產品簡介

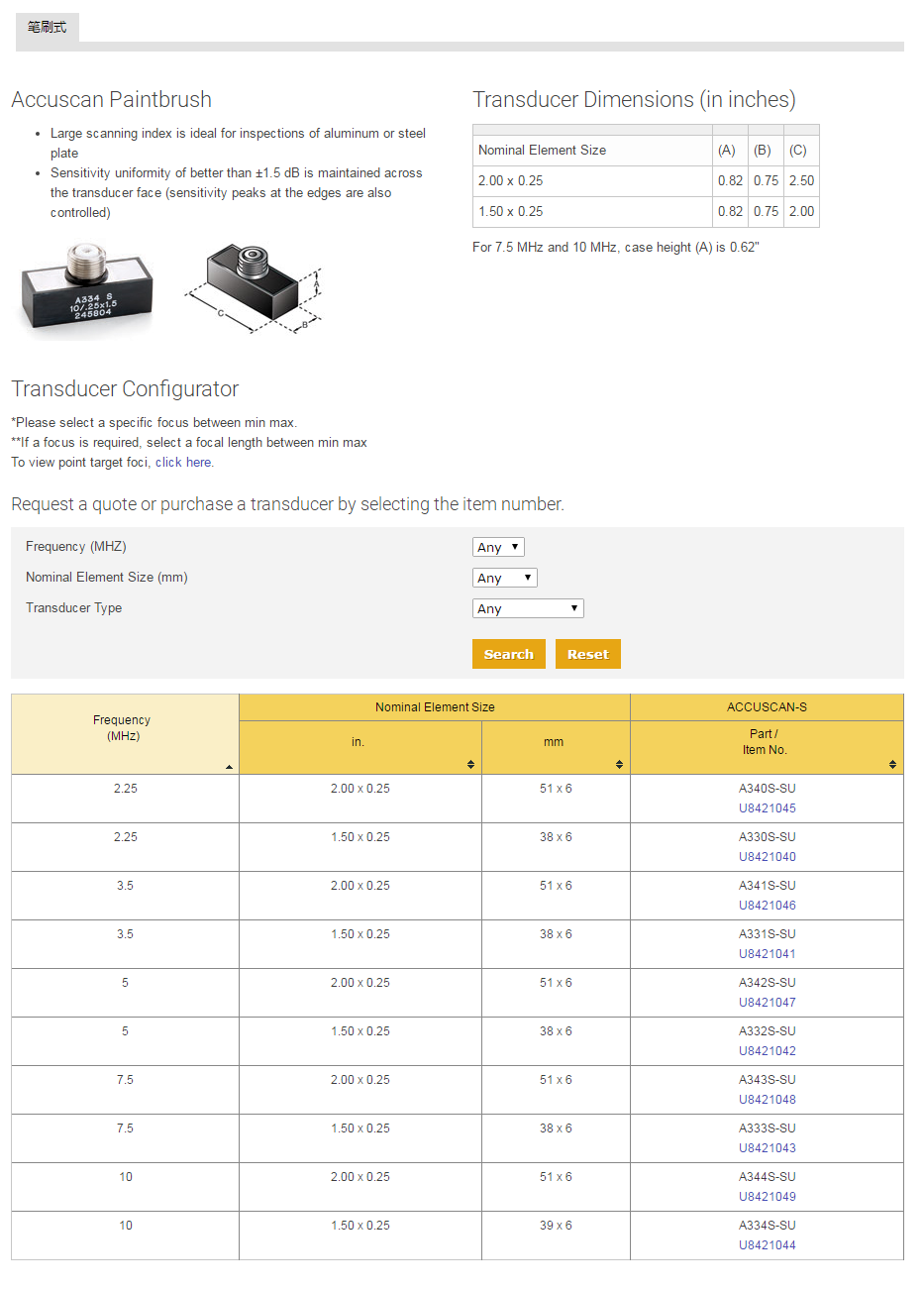

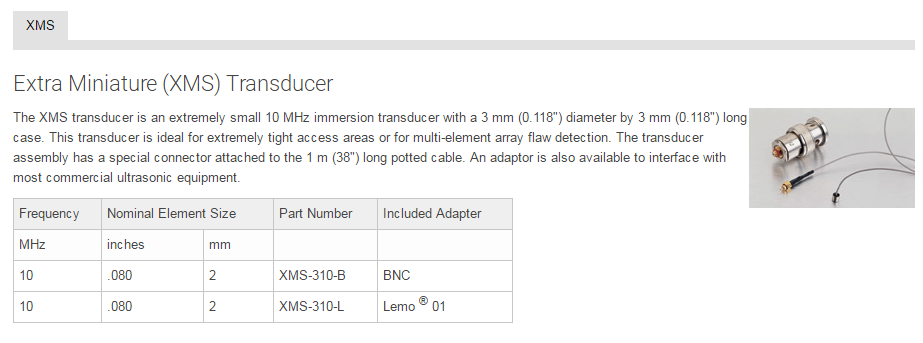

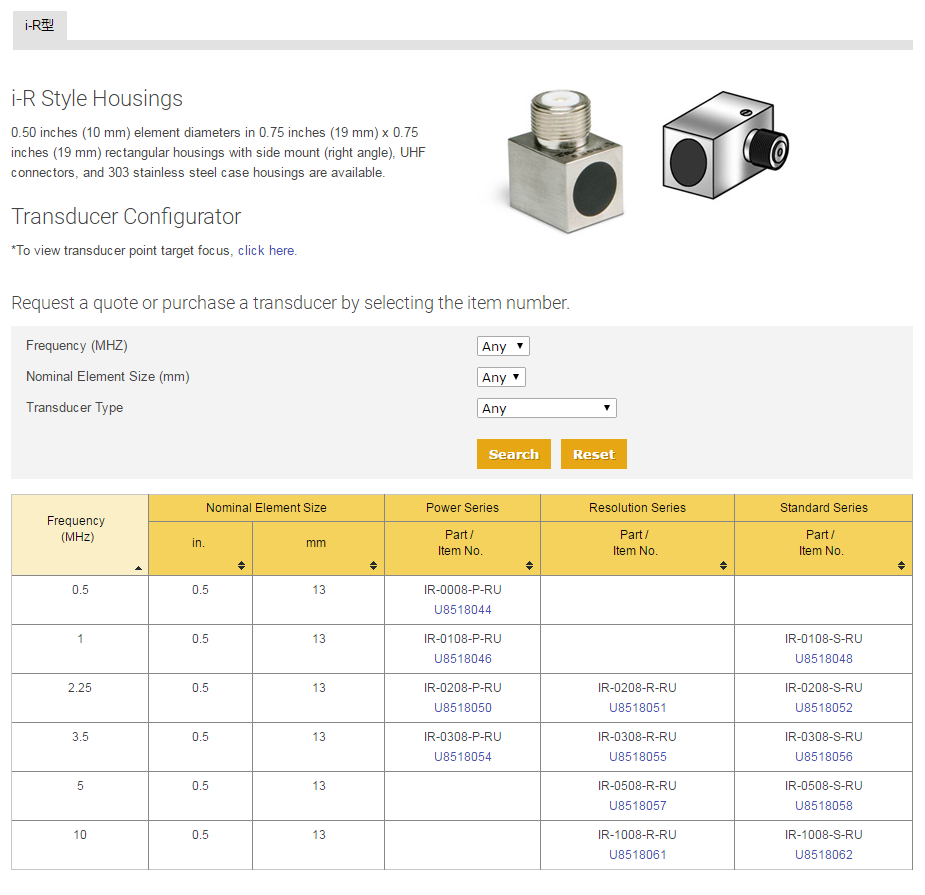

Immersion special transducers refer to a variety of transducers that conduct many specific applications such as measuring wall thickness, inspection of aluminum plating, or multi-element array flaw detection.This group contains the following transducer types: side looking case, paintbrush, i-R style and XMS.
側視外殼式
Side Looking Immersion Transducers
-
Ideal for measuring wall thicknesses of pipe where access to the outer diameter is limited
-
Small outer diameter allows for greater accessibility in tight spaces than standard immersion transducers with reflector mirrors
-
Sound exit point is located at a 90° angle relative to the straight Microdot ® connector
-
Probe extensions such as the F211 are available to lengthen the standard design
Part
Numbers |
Freq. |
Nominal
Element Size |
Focus |
|
|
MHz |
inches |
mm |
inches |
|
V3591 |
10 |
0.125 |
3 |
0.50 OLF |
|
V3343 |
20 |
0.125 |
3 |
0.50 OLF |
· Note: All above side looking immersion transducers have straight Microdot connectors.
